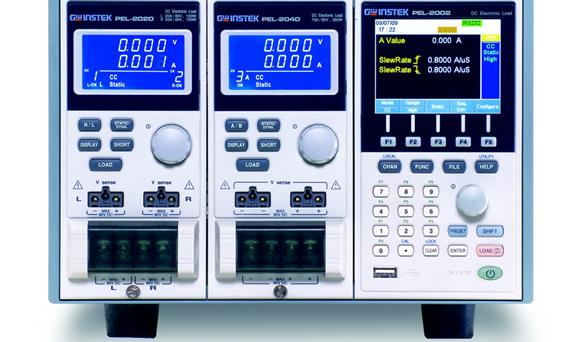

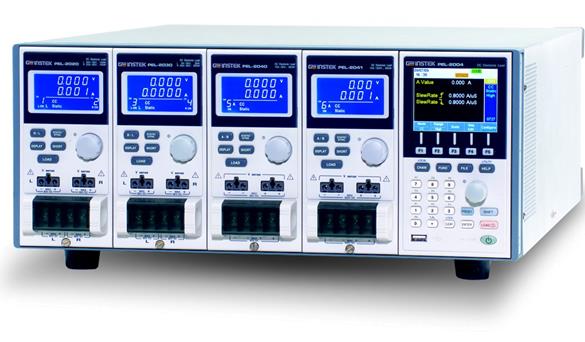

PEL-2000可編程直流電子負載產品詳細規格
10組預置內存
可并行操作
支持負載模擬的序列功能
外部波形控制功能
高精度和高分辨率
可變轉換速率
高達8通道的多通道輸出
過功率/過電流/過電壓/過溫保護
延遲控制

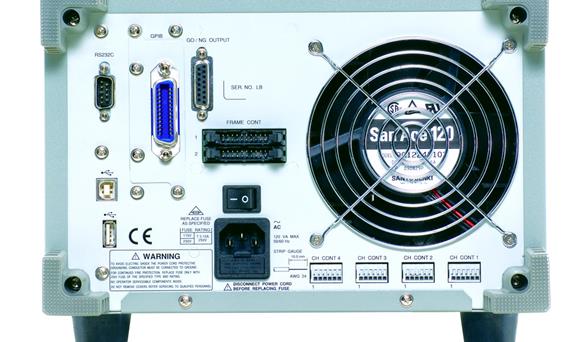

USB接口，支持RS-232C,GPIB(選配）
120組設置內存
| 規格 | ||||||
| PEL-2020(100Wx2) | ||||||
| POWER | 20W | 100W | ||||
| CURRENT | 0~2A | 0~20A | ||||
| VOLTAGE | 1~80V | |||||
| MIN.OPERATING VOLTAGE(DC) | 1.0V at 2A | 1V at 20A | ||||
| STATIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| Range | 0~2A | 0~20A | ||||
| Resolution | 0.5mA | 5mA | ||||
| Accuracy | ±0.1%±0.1%F.S. | ±0.1%±0.2%F.S. | ||||
| CONSTANT RESISTANCE MODE | ||||||
| Range | 0.075Ω~300Ω(100W/16V);3.75Ω~15K(100W/80V) | |||||
| Resolution | 12bits | |||||
| Accuracy | 300Ω : ± 0.1ひ ± 0.2%;15KΩ: ± 0.01ひ ± 0.1% | |||||
| CONSTANT VOLTAGE MODE | ||||||
| Range | 1~80V | |||||
| Resolution | 20mV | |||||
| Accuracy | ±0.05% ± 0.1%F.S. | |||||
| DYNAMIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| T1&T2 | 0.025mS ~ 10mS / Res : 1uS;1mS ~ 30S / Res : 1mS | |||||
| Accuracy | 1uS / 1mS ± 100ppm | |||||
| Slew Rate(Accuracy 5%) | 0.32 ~ 80mA/uS | 3.2 ~ 800mA/uS | ||||
| Slew Rate Resolution | 0.32mA/uS | 3.2mA/uS | ||||
| Current | 0~2A | 0~20A | ||||
| Current Resolution | 0.5mA | 5mA | ||||
| Current Accuracy | ±0.4% F.S. | |||||
| MEASUREMENT | ||||||
| VOLTAGE READBACK | ||||||
| Range | 0~16V | 0~80V | ||||
| Resolution | 0.5mV | 2.5mV | ||||
| Accuracy | ±0.05% ± 0.05% F.S. | |||||
| Range | 0~2A | 0~20A | ||||
| Resolution | 0.0625mA | 0.625mA | ||||
| Accuracy | ±0.1% ± 0.1% F.S. | |||||
| PROTECTIVE | ||||||
| Over Power Protection(2%) | ||||||
| Range | 1~102W | |||||
| Resolution | 0.5W | |||||
| Accuracy | ||||||
| Over Current Protection(2%) | ||||||
| Range | 0~20.4A | |||||
| Resolution | 0.05A | |||||
| Accuracy | ||||||
| Over Voltage Protection(2%) | ||||||
| Range | 1~81.6V | |||||
| Resolution | 0.2V | |||||
| Accuracy | ||||||
| Over Temperature Protection | ≒85℃ | |||||
| Rated Power Protection(2 %)： | ||||||
| Value | 110W | |||||
| Accuracy | ||||||
| GENERAL | ||||||
| SHORT CIRCUIT | ||||||
| Current(CC) | ≒2.2/2A | ≒22/20A | ||||
| Voltage(CV) | 0V | 0V | ||||
| Resistance(CR) | ≒3.75Ω | ≒0.075Ω | ||||
| INPUT RESISTANCE(LOAD OFF) | 800KΩ(Typical) | |||||
| PEL-2030(250W/30W) | ||||||
| POWER | 30W | 30W | 250W | |||
| CURRENT | 0~5A | 0~4A | 0~40A | |||
| VOLTAGE | 1~80V | |||||
| MIN.OPERATING VOLTAGE(DC) | 1.0V at 5A | 1.0V at 4A | 1.0V at 40A | |||
| STATIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| Range | 0~5A | 0~4A | 0~40A | |||
| Resolution | 1.25mA | 1mA | 10mA | |||
| Accuracy | ±0.1%±0.1%F.S | ±0.1%±0.1%F.S | ±0.1%±0.2%F.S | |||
| CONSTANT RESISTANCE MODE | ||||||
| Range | 0.3Ω~1.2KΩ(30W/16V) | 0.0375Ω~150Ω(250W/16V) | ||||
| 15Ω~60K(30W/80V) | 1.875Ω~7.5K(250W/80V) | |||||
| Resolution | 12bits | |||||
| Accuracy | 12KΩ : ±0.1ひ ± 0.2% | 150Ω : ±0.1ひ ± 0.2% | ||||
| 60KΩ: ±0.01ひ ± 0.1% | 7.5KΩ: ±0.01ひ ± 0.1% | |||||
| CONSTANT VOLTAGE MODE | ||||||
| Range | 1~80V | |||||
| Resolution | 20mV | |||||
| Accuracy | ±0.05% ± 0.1%F.S. | |||||
| DYNAMIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| T1&T2 | 0.025mS ~ 10mS / Res : 1uS;1mS ~ 30S / Res : 1mS | |||||
| Accuracy | 1uS / 1mS + 100ppm | |||||
| Slew Rate(Accuracy 5%) | 0.8 ~ 200mA/uS | 0.64 ~ 160mA/uS | 6.4 ~ 1600mA/uS | |||
| Slew Rate Resolution | 0.8mA/uS | 0.64mA/uS | 6.4mA/uS | |||
| Current | 0~5A | 0~4A | 0~40A | |||
| Current Resolution | 1.25mA | 1mA | 10mA | |||
| Current Accuracy | ±0.4% F.S. | |||||
| MEASUREMENT | ||||||
| VOLTAGE READBACK | ||||||
| Range | 0~16V | 0~80V | 0~16V | 0~80V | ||
| Resolution | 0.5mV | 2.5mV | 0.5mV | 2.5mV | ||
| Accuracy | ±0.05% ± 0.05% F.S. | |||||
| CURRENT READBACK | ||||||
| Range | 0~5A | 0~4A | 0~40A | |||
| Resolution | 0.15625mA | 0.125mA | 1.25mA | |||
| Accuracy | ±0.1% ± 0.1% F.S. | |||||
| PROTECTIVE | ||||||
| Over Power Protection(2%) | ||||||
| Range | 1~30.6W | 1~255W | ||||
| Resolution | 0.15W | 1.25W | ||||
| Accuracy | ||||||
| Over Current Protection(2%) | ||||||
| Range | 0~5.1A | 0~40.8A | ||||
| Resolution | 0.0125A | 0.1A | ||||
| Accuracy | ||||||
| Over Voltage Protection(2%) | ||||||
| Range | 1~81.6V | 1~81.6V | ||||
| Resolution | 0.2V | 0.2V | ||||
| Accuracy | ||||||
| Over Temperature Protection | ≒85℃ | |||||
| Rated Power Protection(2 %)： | ||||||
| Value | 33W | 275W | ||||
| Accuracy | ||||||
| GENERAL | ||||||
| SHORT CIRCUIT | ||||||
| Current(CC) | ≒5.5/5A | ≒4.4/4A | ≒44/40A | |||
| Voltage(CV) | 0V | 0V | 0V | |||
| Resistance(CR) | ≒15Ω | ≒0.3Ω | ≒1.875Ω | ≒0.0375Ω | ||
| INPUT RESISTANCE(LOAD OFF) | 800KΩ(Typical) | |||||
| PEL-2040 | PEL-2041 | |||||
| POWER | 35W | 350W | 35W | 350W | ||
| CURRENT | 0~7A | 0~70A | 0~1A | 0~10A | ||
| VOLTAGE | 1~80V | 2.5~500V | ||||
| MIN.OPERATING VOLTAGE(dc) | 1.0V at 7A | 1V at 70A | 2.5V at 1A | 2.5V at 10A | ||
| STATIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| Range | 0~7A | 0~70A | 0~1A | 0~10A | ||
| Resolution | 1mA | 10mA | 0.2mA | 2mA | ||
| Accuracy | ±0.1%±0.1%F.S. | ±0.1%±0.2%F.S. | ±0.1%±0.1%F.S. | ±0.1%±0.2%F.S. | ||
| CONSTANT RESISTANCE MODE | ||||||
| Range | 0.025Ω~100Ω(350W/16V) | 1.25Ω~5KΩ(350W/125V) | ||||
| 1.25Ω~5K(350W/80V) | 50Ω~200K(350W/500V) | |||||
| Resolution | 12bits | 12bits | ||||
| Accuracy | 100Ω : ±0.1ひ ± 0.2% | 5KΩ : ±0.02ひ ± 0.2% | ||||
| 5KΩ: ±0.01ひ ± 0.1% | 200KΩ: ±0.005ひ ± 0.1% | |||||
| CONSTANT VOLTAGE MODE | ||||||
| Range | 1~80V | 2.5~500V | ||||
| Resolution | 20mV | 100mV | ||||
| Accuracy | ±0.05% ± 0.1%F.S. | ±0.05% ± 0.1%F.S. | ||||
| DYNAMIC MODE | ||||||
| CONSTANT CURRENT MODE | ||||||
| T1&T2 | 0.025mS ~ 10mS / Res : 1uS | 0.025mS ~ 10mS / Res : 1uS | ||||
| 1mS ~ 30S / Res : 1mS | 1mS ~ 30S / Res : 1mS | |||||
| Accuracy | 1uS / 1mS ± 100ppm | 1uS / 1mS ± 100ppm | ||||
| Slew Rate(Accuracy 5%) | 0.001 ~ 0.28A/uS | 0.01 ~ 2.8A/uS | 0.16 ~ 40mA/uS | 1.6 ~ 400mA/uS | ||
| Slew Rate Resolution | 0.001A/uS | 0.01A/uS | 0.16mA/uS | 1.6mA/uS | ||
| Current | 0~7A | 0~70A | 0~1A | 0~10A | ||
| Current Resolution | 1mA | 10mA | 0.2mA | 2mA | ||
| Current Accuracy | ±0.4% F.S. | ±0.4% F.S. | ||||
| MEASUREMENT | ||||||
| VOLTAGE READBACK | ||||||
| Range | 0~16V | 0~80V | 0~125V | 0~500V | ||
| Resolution | 0.5mV | 2.5mV | 4mV | 16mV | ||
| Accuracy | ±0.05% ± 0.05% F.S. | ±0.05% ± 0.05% F.S. | ||||
| CURRENT READBACK | ||||||
| Range | 0~7A | 0~70A | 0~1A | 0~10A | ||
| Resolution | 0.175mA | 1.75mA | 0.032mA | 0.32mA | ||
| Accuracy | ±0.1% ± 0.1% F.S. | ±0.1% ± 0.1% F.S. | ||||
| PROTECTIVE | ||||||
| Over Power Protection(2%) | ||||||
| Range | 1~357W | 1~357W | ||||
| Resolution | 1.75W | 1.75W | ||||
| Accuracy | ||||||
| Over Current Protection(2%) | ||||||
| Range | 0~71.4A | 0~10.2A | ||||
| Resolution | 0.175A | 0.025A | ||||
| Accuracy | ||||||
| Over Voltage Protection(2%) | ||||||
| Range | 1~81.6V | 1~510V | ||||
| Resolution | 0.2V | 1.25V | ||||
| Accuracy | ||||||
| Over Temperature Protection | ≒85℃ | ≒85℃ | ||||
| Rated Power Protection(2 %)： | ||||||
| Value | 385W | 385W | ||||
| Accuracy | ||||||
| GENERAL | ||||||
| SHORT CIRCUIT | ||||||
| Current(CC) | ≒7.7/7A | ≒77/70A | ≒1.1/1A | ≒11/10A | ||
| Voltage(CV) | 0V | 0V | 0V | 0V | ||
| Resistance(CR) | ≒1.25Ω | ≒0.025Ω | ≒50Ω | ≒1.25Ω | ||
| INPUT RESISTANCE(LOAD OFF) | 800KΩ(Typical) | 800KΩ(Typical) | ||||
